MESH INNERDUCT 55MM
3 FLEXIBLE CELLS INNERDUCT
55 MM WIDTH

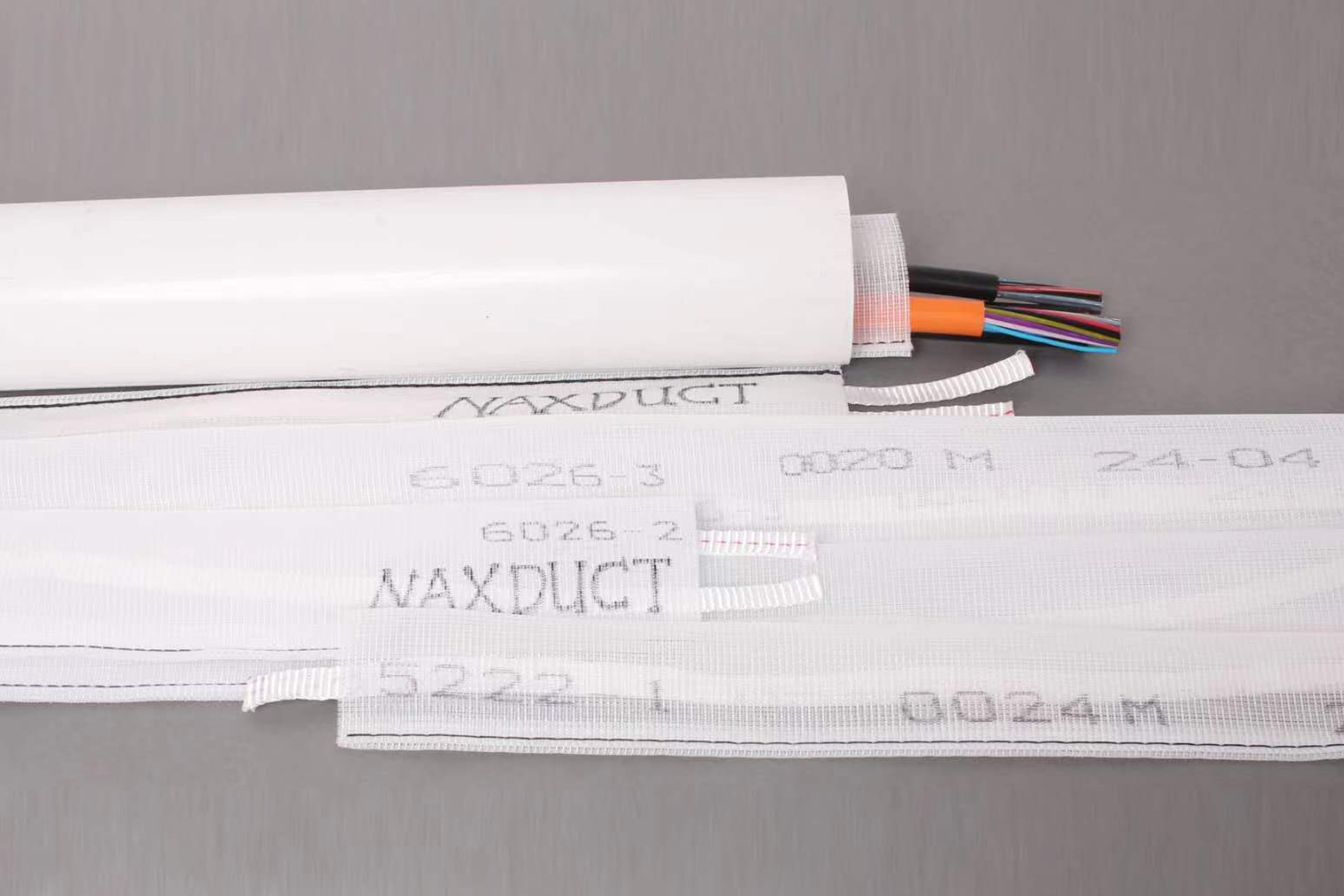

55mm three grid geotextile mesh
Channelization and additional protection of fiber optic cables
Geotextile mesh is a material composed of interwoven synthetic fibers, forming a flexible but elastic structure. Its main function is to provide protection from external factors that may damage fiber optic cables passing through secondary conductors and/or pipelines, such as humidity, temperature changes, wear, and physical effects. The network acts as a protective barrier around the cable, absorbing mechanical stress and evenly distributing any load applied to the cable.
The geotextile mesh with three 55mm sewing units allows for the separation of fiber optic cables into separate compartments.
Specially designed pipes and sub conductors for fiber optic cabling and laying.
Its purpose is to separate, classify, and obtain space by optimizing the interior of existing pipelines. Made of flame retardant halogen-free nylon monofilament fabric. In addition, it is also resistant to chemical agents and hydrocarbons. Textile sub conductors are made of low friction agents for easy assembly during installation.
The application scope is very wide, and the manufacturing of textile soft sub conductors mainly involves introducing optical fibers, telephone, and power cables into new facilities or installed pipelines.
Advantages and Benefits
Made by combining high-strength textile materials with high-density synthetic fabrics
Not absorbing liquids, low density
All media
Compatible and adaptable to installed pipelines
Fast installation speed and convenient maintenance
Using sewing thread to distinguish colors in guide straps
Dialing per meter
Reduce installation space
Chemical resistant agents
Technical characteristics
Tritubo flexible geotextile mesh: composed of 60% PP/40% PES
Cells: 3 x 55 millimeters
Useful interior: 50mm
Total thickness: 5mm
Maximum allowable diameter inside each battery: 24mm
Weight: 110 grams/metric ton
Tensile strength: ≥ 1600kg.
Tensile strength of guide belt: ≥ 500kg.
Elongation under 50 kg load<2%
Melting temperature>215 º C
Machinery and packaging
Weight kg: 220 kg
Size approximately: 115 x 115 x 55 centimeters
Length of each lap: 2 kilometers
Application program
Specially designed for introducing fiber optic cables, even in closed, saturated, or blocked pipelines and pipelines.
They can be used for:
Installed pipelines
Laying pipelines
Tube
External factory
General pipelines
Usage and assembly
Using geotextile mesh through existing pipelines
Input the guide into the textile sub conductor and transfer it from one end to the other
Tie the cables we want to install onto our cable conduit
Pull the other end completely through
If necessary, add special oil passages for easy introduction
THREE CELLS FLEXIBLE TEXTILE MESH INNERDUCT
WE HELP YOU CHOOSE THE BEST OPTION
One of the objectives that our company has set is the advice and training of our customers to save costs in network deployments and laying fiber optic cables. With this three-cell textile mesh we reduce the need for space in the ducts and keep the cables aligned and organized inside the duct.
